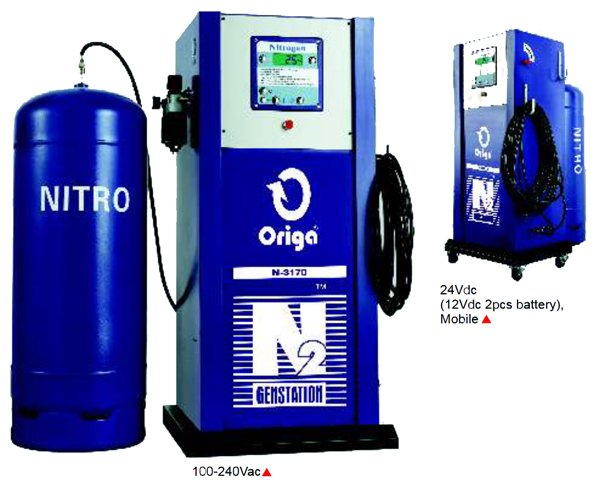

N-3170

Technical Data Summary

Dimensions 100-240Vac 24Vdc
Height 1260mm/49.6" 1344mm/52.9"
Width 620mm/24.4" 620mm/24.4"
Depth 430mm/16.9" 850mm/33.5"
Power Requirement 100-240Vac 50/60HZ, 24Vdc (12Vdc 2pcs internal battery and 100-240Vac 50/60HZ charger included)
Power Consumption 70VA
Operating Temperature Range 20 ℃ /-4 F to 70 ℃ /158 F
Compressed Air Input Range 145-217PSI/10-15bar/1000-1500kPa
Nitrogen Purity ≥ 95%
Nitrogen Output 170L/min (6cfm) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank 145-174PSI/10-12bar/1000-1200kPa Adjustable
Operating Range 5-162PSI/0.3-11.2bar/35-1120kPa
Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa
Nitrogen Purges 0-9
Inflator Accuracy ± 1PSI/0.07bar/7kPa
Resolution 1PSI/0.1bar/5kPa
Units of measurement PSI/bar/kPa

Specifications

  • Generates Nitrogen from your compressed air
  • Auto Shut-Off
  • 2 Pre-Filters
  • 118L/31.1gal(us) external Nitrogen Storage Tank
  • Adjustable Over Pressure Setting(OPS)
  • Nitrogen Purge and Fill cycle(N2P)
  • Adjustable number of cycles
  • Adjustable lower purge pressure limit
  • Standard inflate to target
  • 4 air outlets allow simultaneous inflation of up to 4 tires
  • Auto-start inflation
  • Automatic zero drift adjustment
  • Remain at last setting
  • Comprehensive diagnostics and error reporting
  • Audible and visual end of the cycle signal indicators
  • Large backlight LCD display
  • Vandal resistant mechanical switches
  • Hose standard 4Nos*10m/32.8ft with single clip-on closed chuck

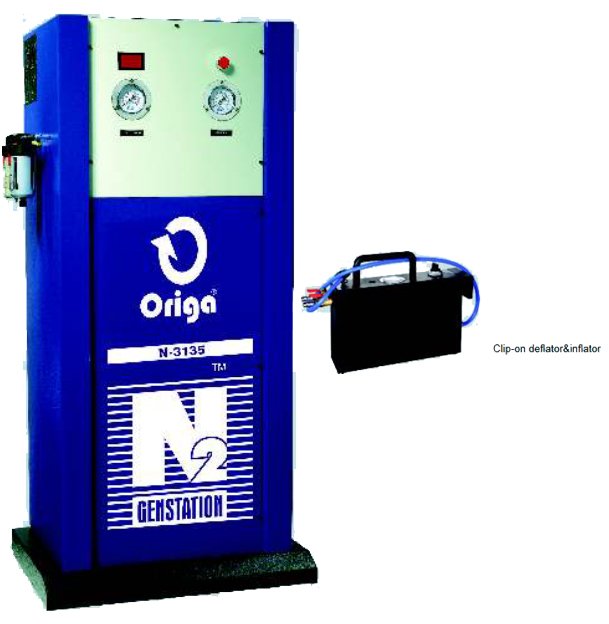

N-3135

  • 102PSI/7bar/700kPa
  • 50L/min (1.8cfm)

Technical Data Summary

Dimensions
Height 1260mm/49.6"
Width 620mm/24.4"
Depth 430mm/16.9"
Power Requirement 110Vac/220Vac 50/60HZ
Power Consumption 20VA
Operating Temperature Range -20 ℃/-4 F to 70 ℃/158 F
Compressed Air Input Range 87-145PSI/6-10bar/600-1000kPa
Nitrogen Purity ≥ 95%
Nitrogen Output 50L/min (1.8cfm) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa

Specifications

  • Generates Nitrogen from your compressed air
  • 2 Pre-Filters
  • 50L/13.2gal(us) internal Nitrogen Storage Tank
  • 2Nos*10m/32.8ft standard hoses with 2 quick couplers to connect the unit and Clip-on deflator&inflator included
  • To increase the purity of nitrogen in the tire , the air in the tire must be removed and the nitrogen must be inflated by the Clip-on deflator&inflator manually

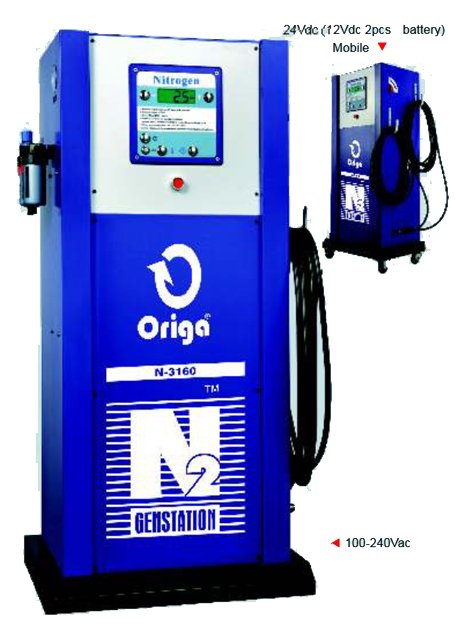

N-3160

  • Inflate up to 4 tires simultaneous
  • Nitrogen Purge(N2P)
  • Over Pressure Setting(OPS)
  • 90PSI/6.2bar/620kPa
  • 85L/min (3cfm)

Technical Data Summary

Dimensions 100-240Vac 24Vdc
Height 1260mm/49.6" 1344mm/52.9"
Width 620mm/24.4" 620mm/24.4"
Depth 430mm/16.9" 430mm/16.9"
Power Requirement 100-240Vac 50/60HZ,
24Vdc (12Vdc 2pcs internal battery and
100-240Vac 50/60HZ charger included)
Power Consumption 35VA
Operating Temperature Range -20 ℃/-4 F to 70 ℃ /158 F
Compressed Air Input Range 87-145PSI/6-10bar/600-1000kPa
Nitrogen Purity ≥ 95%
Nitrogen Output 85L/min (3cfm) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa
Operating Range 5-90PSI/0.3-6.2bar/35-620kPa
Over Pressure Setting Range 0-29PSI/0-2.0bar/0-200kPa
Nitrogen Purges 0-9
Inflator Accuracy ± 1PSI/0.07bar/7kPa
Resolution 1PSI/0.1bar/5kPa
Units of measurement PSI/bar/kPa

Specifications

  • Generates Nitrogen from your compressed air
  • Auto Shut-Off
  • 2 Pre-Filters
  • 50L/13.2gal(us) internal Nitrogen Storage Tank
  • Adjustable Over Pressure Setting(OPS)
  • Nitrogen Purge and Fill cycle(N2P)
  • Adjustable number of cycles
  • Adjustable lower purge pressure limit
  • Standard inflate to target
  • 4 air outlets allow simultaneous inflation of up to 4 tires
  • Auto-start inflation
  • Automatic zero drift adjustment
  • Remain at last setting
  • Comprehensive diagnostics and error reporting
  • Audible and visual end of the cycle signal indicators
  • Large backlight LCD display
  • Vandal resistant mechanical switches
  • Hose standard 4Nos*10m/32.8ft with single clip-on closed chuck

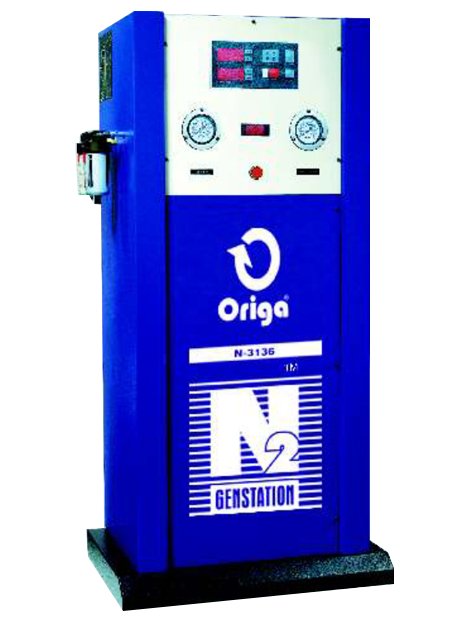

N-3136

  • Auto-start inflation
  • Single Tire Application
  • Over Pressure Setting(OPS)
  • 72PSI/5bar/500kPa
  • 58L/min (2.0cfm)

Technical Data Summary

Dimensions
Height 1260mm/49.6"
Width 620mm/24.4"
Depth 430mm/16.9"
Power Requirement 110Vac/220Vac 50/60HZ
Power Consumption 30VA
Operating Temperature Range -20 ℃ /-4 F to 70 ℃ /158 F
Compressed Air Input Range 87-145PSI/6-10bar/600-1000kPa
Nitrogen Purity ≥ 95%
Nitrogen Output 58L/min (2.0cfm) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank 102PSI/7bar/700kPa
Operating Range 15-72PSI,1.0-5bar,0.1-0.5MPa,1.0-5kgf/cm
Resolution 1PSI,0.1bar,0.01MPa,0.1kgf/cm
Units of measurement PSI,bar,MPa,kgf/cm

Specifications

  • Generates Nitrogen from your compressed air
  • 2 Pre-Filters
  • 50L/13.2gal(us) internal Nitrogen Storage Tank
  • Auto-start inflation
  • Remain at last setting
  • Audible and visual end of the cycle signal indicators
  • Adjustable lower purge pressure limit
  • LED display
  • Hose standard 1Nos*10m/32.8ft with single clip-on open type chuck
  • To increase the purity of nitrogen in the tire,the valve cores must be removed manually and allow all the air to escape from the tire Before inflate tire with nitrogen,firstly the unit will pump the air 0-99 seconds from the tire by the internal vacuum generator,then inflate nitrogen to the target setting tire pressure.

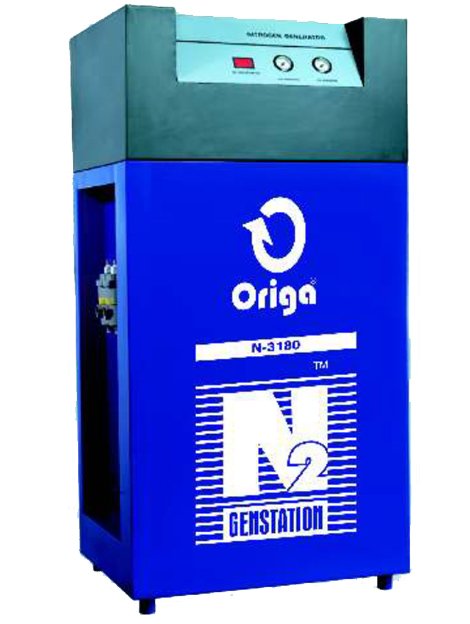

N-3180

  • 174PSI/12bar/1200kPa
  • 170L/min (6cfm

Technical Data Summary

Dimensions
Height 1500mm/59.1”
Width 760mm/29.9”
Depth 590mm/23.2"
Power Requirement 110Vac/220Vac 50/60HZ
Power Consumption 80VA
Operating Temperature Range -20 ℃ /-4 F to 70 ℃ /158 F
Compressed Air Input Range 145-217PSI/10-15bar/1000-1500kPa
Nitrogen Purity ≥ 85%
Nitrogen Output 170L/min (6cfm) @ 116PSI/8bar/800kPa
Absorption pressure
Maximum Nitrogen Pressure in Tank 174PSI/12bar/1200kPa

Specifications

  • Generates Nitrogen from your compressed air
  • 2 Pre-Filters
  • 118L/31.1gal(us) internal Nitrogen Storage Tank
  • 1Nos*10m/32.8ft standard hoses with 2 quick couplers to connect the unit and tire inflation gun
